ros routeros ikev2 ipsec传输模式配置

admin

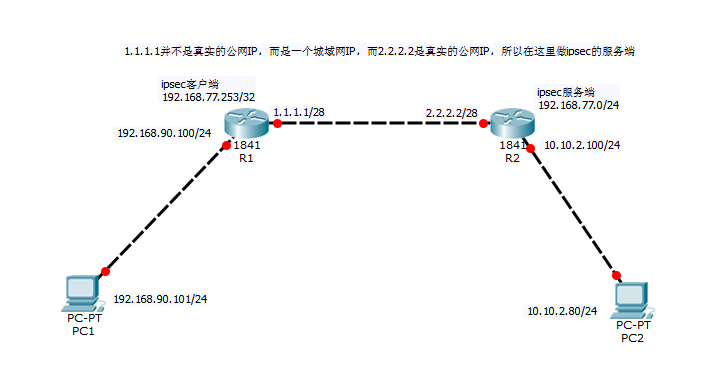

先介绍下环境拓扑图：

1.1.1.1并不是真实的公网IP，而是一个城域网IP，而2.2.2.2是真实的公网IP，所以在这里做ipsec的服务端

1.1.1.1被nat出去以后的IP是b.b.b.b

客户端配置：

1. /interface bridge

2. add name=bridge1-wan

3. /interface ethernet

4. set [ find default-name=ether1 ] name=ether1-wan

5. set [ find default-name=ether2 ] name=ether2-wan

6. set [ find default-name=ether3 ] name=ether3-wan

7. set [ find default-name=ether4 ] name=ether4-wan

8. set [ find default-name=ether5 ] name=ether5-lan

9. /interface pppoe-client

10. add disabled=no interface=bridge1-wan name=pppoe-out1 password=123456 user=\

11. 02501017724

12. /ip ipsec mode-config

13. add name=cfg1 responder=no

14. /ip ipsec profile

15. add enc-algorithm=aes-256 hash-algorithm=sha256 name=ikev2-profile1

16. /ip ipsec peer

17. add address=2.2.2.2/32 exchange-mode=ike2 name=ikev2-peer1 profile=\

18. ikev2-profile1

19. /ip ipsec proposal

20. add auth-algorithms=sha256 enc-algorithms=aes-256-cbc name=ikev2-proposal1 \

21. pfs-group=none

22. /interface bridge port

23. add bridge=bridge1-wan interface=ether1-wan

24. add bridge=bridge1-wan interface=ether2-wan

25. add bridge=bridge1-wan interface=ether3-wan

26. add bridge=bridge1-wan interface=ether4-wan

27. /ip address

28. add address=192.168.90.100/24 interface=ether5-lan network=192.168.90.0

29. /ip dns

30. set servers=114.114.114.114

31. /ip firewall nat

32. add action=accept chain=srcnat dst-address=10.10.2.0/24 src-address=\

33. 192.168.77.0/24

34. add action=accept chain=srcnat dst-address=10.10.2.0/24 src-address=\

35. 192.168.90.0/24

36. add action=masquerade chain=srcnat out-interface=pppoe-out1

37. /ip ipsec identity

38. add generate-policy=port-strict mode-config=cfg1 peer=ikev2-peer1 secret=\

39. 12345678

40. /ip ipsec policy(这里要斟酌下1.1.1.1这里的IP怎么写，因为这个IP是城域网IP，nat出去以后并不是这个ip，nat出去以后是b.b.b.b这个ip)

41. add dst-address=10.10.2.0/24 level=unique proposal=ikev2-proposal1 \

42. sa-dst-address=2.2.2.2 sa-src-address=1.1.1.1 src-address=\

43. 192.168.90.0/24 tunnel=yes

44. /ip route

45. add distance=1 gateway=pppoe-out1

复制代码

服务端配置：

1. /interface ethernet

2. set [ find default-name=ether1 ] name=ether1-wan

3. set [ find default-name=ether2 ] name=ether2-lan

4. /ip ipsec profile

5. add enc-algorithm=aes-256 hash-algorithm=sha256 name=ikev2-profile1

6. /ip ipsec peer

7. add exchange-mode=ike2 name=ikev2-peer1 passive=yes profile=ikev2-profile1 \

8. send-initial-contact=no

9. /ip ipsec proposal

10. add auth-algorithms=sha256 enc-algorithms=aes-256-cbc name=ikev2-proposal1 \

11. pfs-group=none

12. /ip pool

13. add name=ikev2-pool ranges=192.168.77.2-192.168.77.254

14. /ip ipsec mode-config

15. add address-pool=ikev2-pool address-prefix-length=32 name=cfg1 \

16. split-include=10.10.2.0/24 system-dns=no

17. /ip address

18. add address=2.2.2.2/28 interface=ether1-wan network=2.2.2.0

19. add address=10.10.2.100/24 interface=ether2-lan network=10.10.2.0

20. /ip firewall nat

21. add action=accept chain=srcnat dst-address=192.168.77.0/24 src-address=\

22. 10.10.2.0/24

23. add action=accept chain=srcnat dst-address=192.168.90.0/24 src-address=\

24. 10.10.2.0/24

25. add action=masquerade chain=srcnat out-interface=ether1-wan

26. /ip ipsec identity

27. add generate-policy=port-strict mode-config=cfg1 peer=ikev2-peer1 secret=\

28. 12345678

29. /ip ipsec policy(这里需要斟酌下，IP公网怎么写,b.b.b.b是客户端路由nat以后的公网IP）

30. add dst-address=192.168.90.0/24 level=unique proposal=ikev2-proposal1 \

31. sa-dst-address=b.b.b.b sa-src-address=2.2.2.2 \

32. src-address=10.10.2.0/24 tunnel=yes

33. /ip route

34. add distance=1 gateway=2.2.2.1

复制代码
