ros的外网为pppoe接入，用户使用pptp内网拨号到ros，然后通过其中一条pppoe伪装上网。

admin

环境：

ros为ccr，pppoe为3根电信接入，每根电信4拨，一共12根ADSL，pptp的pool池，设置为12个IP，每个IP进行伪装到其中一根pppoe上网，pptp的帐号就一个帐号密码，允许重复拨号。

由于电信多拨，需要设置多个vrrp，来拨号，可以让拨号出去的mac都不同，所以生成了12个vrrp，生成12个id。

每个pppoe进入一个vlan，一个vlan id对应一个pppoe

vvrp启用，还需要对vrrp主网卡设置ip，然后对vrrp设置ip，才能启用。ip随便编写

目的地址如果是局域网的，不要从pppoe出口出去上网，排除了下lanip

1. <font face="Tahoma">/interface bridge

2. add name=bridge1-lan

3. add name=bridge2-wan

4. /interface vlan

5. add interface=bridge2-wan name=vlan801 vlan-id=801

6. add interface=bridge2-wan name=vlan802 vlan-id=802

7. add interface=bridge2-wan name=vlan803 vlan-id=803

8. /interface vrrp

9. add interface=vlan801 name=vrrp1

10. add interface=vlan801 name=vrrp2 vrid=2

11. add interface=vlan801 name=vrrp3 vrid=3

12. add interface=vlan801 name=vrrp4 vrid=4

13. add interface=vlan802 name=vrrp5 vrid=5

14. add interface=vlan802 name=vrrp6 vrid=6

15. add interface=vlan802 name=vrrp7 vrid=7

16. add interface=vlan802 name=vrrp8 vrid=8

17. add interface=vlan803 name=vrrp9 vrid=9

18. add interface=vlan803 name=vrrp10 vrid=10

19. add interface=vlan803 name=vrrp11 vrid=11

20. add interface=vlan803 name=vrrp12 vrid=12

21. /interface pppoe-client

22. add disabled=no interface=vrrp1 name=pppoe-out1 password=电信密码1 user=电信帐号1

23. add disabled=no interface=vrrp2 name=pppoe-out2 password=电信密码1 user=电信帐号1

24. add disabled=no interface=vrrp3 name=pppoe-out3 password=电信密码1 user=电信帐号1

25. add disabled=no interface=vrrp4 name=pppoe-out4 password=电信密码1 user=电信帐号1

26. add disabled=no interface=vrrp5 name=pppoe-out5 password=电信密码2 user=电信帐号2

27. add disabled=no interface=vrrp6 name=pppoe-out6 password=电信密码2 user=电信帐号2

28. add disabled=no interface=vrrp7 name=pppoe-out7 password=电信密码2 user=电信帐号2

29. add disabled=no interface=vrrp8 name=pppoe-out8 password=电信密码2 user=电信帐号2

30. add disabled=no interface=vrrp9 name=pppoe-out9 password=电信密码3 user=电信帐号3

31. add disabled=no interface=vrrp10 name=pppoe-out10 password=电信密码3 user=电信帐号3

32. add disabled=no interface=vrrp11 name=pppoe-out11 password=电信密码3 user=电信帐号3

33. add disabled=no interface=vrrp12 name=pppoe-out12 password=电信密码3 user=电信帐号3

34. /interface wireless security-profiles

35. set [ find default=yes ] supplicant-identity=MikroTik

36. /ip pool

37. add name=pptp ranges=172.22.22.1-172.22.22.12

38. /ppp profile

39. set *FFFFFFFE dns-server=223.5.5.5,223.6.6.6 local-address=172.22.22.254 on-up=":log error (\$"user"."/".\$"local-address"."/".\$"remote-address\

40. "."/".\$"caller-id"."/".\$"called-id"."/".\$"interface")\r\

41. \n:log error (\$"remote-address")\r\

42. \n:global aaa [:pick \$"remote-address" 10 13]\r\

43. \n:log error \$aaa\r\

44. \n/interface pppoe-client enable ("pppoe-out".\$aaa)" only-one=no remote-address=pptp

45. /interface bridge port

46. add bridge=bridge1-lan interface=ether12

47. add bridge=bridge1-lan interface=ether11

48. add bridge=bridge1-lan interface=ether10

49. add bridge=bridge1-lan interface=ether9

50. add bridge=bridge2-wan interface=ether1

51. add bridge=bridge2-wan interface=ether2

52. add bridge=bridge2-wan interface=ether3

53. add bridge=bridge2-wan interface=ether4

54. add bridge=bridge2-wan interface=ether5

55. add bridge=bridge2-wan interface=ether6

56. add bridge=bridge2-wan interface=ether7

57. add bridge=bridge2-wan interface=ether8

58. /interface pptp-server server

59. set enabled=yes

60. /ip address

61. add address=192.168.64.201/24 interface=bridge1-lan network=192.168.64.0

62. add address=123.123.1.1 interface=vrrp1 network=123.123.1.1

63. add address=123.123.1.0 interface=vlan801 network=123.123.1.0

64. add address=123.123.1.2 interface=vrrp2 network=123.123.1.2

65. add address=123.123.1.3 interface=vrrp3 network=123.123.1.3

66. add address=123.123.1.4 interface=vrrp4 network=123.123.1.4

67. add address=123.123.2.0 interface=vlan802 network=123.123.2.0

68. add address=123.123.2.1 interface=vrrp5 network=123.123.2.1

69. add address=123.123.2.2 interface=vrrp6 network=123.123.2.2

70. add address=123.123.2.3 interface=vrrp7 network=123.123.2.3

71. add address=123.123.3.1 interface=vrrp9 network=123.123.3.1

72. add address=123.123.3.0 interface=vlan803 network=123.123.3.0

73. add address=123.123.3.2 interface=vrrp10 network=123.123.3.2

74. add address=123.123.3.3 interface=vrrp11 network=123.123.3.3

75. add address=123.123.3.4 interface=vrrp12 network=123.123.3.4

76. add address=123.123.2.4 interface=vrrp8 network=123.123.2.4

77. /ip firewall address-list

78. add address=192.168.0.0/16 list=lanip

79. add address=172.16.0.0/16 list=lanip

80. add address=10.0.0.0/8 list=lanip

81. /ip firewall mangle

82. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp1 passthrough=no src-address=172.22.22.1

83. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp2 passthrough=no src-address=172.22.22.2

84. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp3 passthrough=no src-address=172.22.22.3

85. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp4 passthrough=no src-address=172.22.22.4

86. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp5 passthrough=no src-address=172.22.22.5

87. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp6 passthrough=no src-address=172.22.22.6

88. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp7 passthrough=no src-address=172.22.22.7

89. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp8 passthrough=no src-address=172.22.22.8

90. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp9 passthrough=no src-address=172.22.22.9

91. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp10 passthrough=no src-address=172.22.22.10

92. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp11 passthrough=no src-address=172.22.22.11

93. add action=mark-routing chain=prerouting dst-address-list=!lanip new-routing-mark=pptp12 passthrough=no src-address=172.22.22.12

94. /ip firewall nat

95. add action=masquerade chain=srcnat out-interface=all-ppp

96. add action=masquerade chain=srcnat out-interface=bridge1-lan

97. /ip route

98. add distance=1 gateway=pppoe-out1 routing-mark=pptp1

99. add distance=1 gateway=pppoe-out2 routing-mark=pptp2

100. add distance=1 gateway=pppoe-out3 routing-mark=pptp3

101. add distance=1 gateway=pppoe-out4 routing-mark=pptp4

102. add distance=1 gateway=pppoe-out5 routing-mark=pptp5

103. add distance=1 gateway=pppoe-out6 routing-mark=pptp6

104. add distance=1 gateway=pppoe-out7 routing-mark=pptp7

105. add distance=1 gateway=pppoe-out8 routing-mark=pptp8

106. add distance=1 gateway=pppoe-out9 routing-mark=pptp9

107. add distance=1 gateway=pppoe-out10 routing-mark=pptp10

108. add distance=1 gateway=pppoe-out11 routing-mark=pptp11

109. add distance=1 gateway=pppoe-out12 routing-mark=pptp12

110. add distance=1 dst-address=10.0.0.0/8 gateway=192.168.64.254

111. add distance=1 dst-address=172.16.0.0/16 gateway=192.168.64.254

112. add distance=1 dst-address=192.168.0.0/16 gateway=192.168.64.254

113. /ip service

114. set telnet disabled=yes

115. set ftp disabled=yes

116. set www disabled=yes

117. set ssh disabled=yes

118. set api disabled=yes

119. set winbox port=8081

120. set api-ssl disabled=yes

121. /ppp secret

122. add name=pptp帐号 password=pptp密码 profile=default-encryption service=pptp

123. /system clock manual

124. set dst-delta=+08:00 time-zone=+08:00

125. /system ntp client

126. set enabled=yes primary-ntp=10.10.2.2 secondary-ntp=10.10.2.3</font>

复制代码

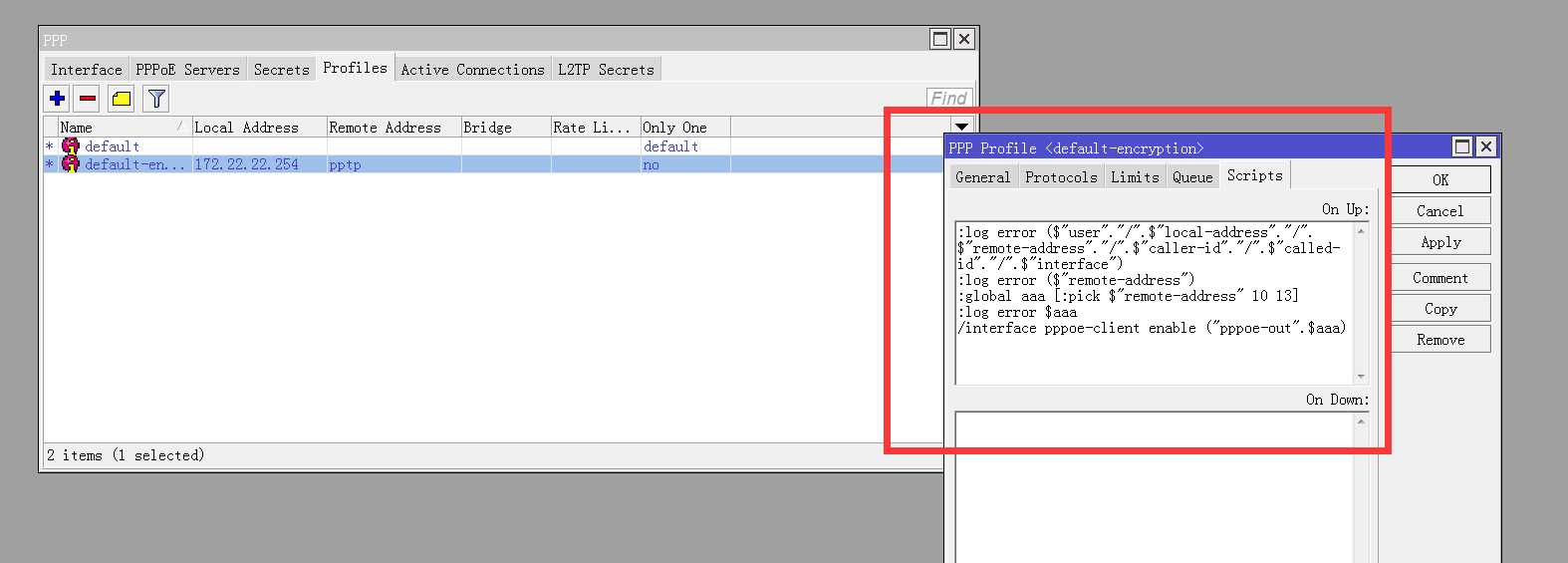

ppp脚本那边设置pptp拨号上来 ，就重启对应的pppoe拨号

1. <font face="Tahoma">:log error ($"user"."/".$"local-address"."/".$"remote-address"."/".$"caller-id"."/".$"called-id"."/".$"interface")

2. :log error ($"remote-address")

3. :global aaa [:pick $"remote-address" 10 13]

4. :log error $aaa

5. /interface pppoe-client enable ("pppoe-out".$aaa)</font>
